HD-SDI Bullet Cameras
Explore Our Range of MILSPEC Certified Bullet Cameras for Defense, Aviation, and Extreme Conditions.

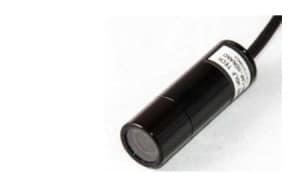

HD Nano Bullet Camera – 19mm x 56mm
The HD Nano Bullet Camera is the smallest bullet-style camera on the market, designed for harsh environments with full 1080p high-definition resolution. Ideal for military, UAV, and tactical applications, this camera offers durability and performance in a compact package.
- Resolution: 2.1 Megapixel, 1080p60 3G-SDI & EX-SDI, 1080p30 HD-SDI
- Video Output: 3G-SDI/EX-SDI/HD-SDI and CVBS Analog (NTSC/PAL)
- Waterproof: Rated IP67
- Compact: 19mm x 56mm, weighing just 80 grams
- Quick Disconnect Option: For easy setup and maintenance
Helicopter Hoist Camera
The Helicopter Hoist Camera by Bad Wolf Technologies is a rugged, high-performance camera designed for helicopter hoist operations. Engineered to handle vibration, shock, and both fresh and saltwater exposure, this camera is perfect for military and civilian aviation use. It installs seamlessly into Sikorsky S92 helicopters without the need to modify mounts or wiring.
- Resolution: 1.3 Megapixel, 1000 TVL
- Video Output: CVBS (NTSC/PAL)
- Durable Build: Milled from 6061-T6 aluminum, waterproof, and saltwater-resistant
- Operating Range: -40°C to +55°C (capable of up to +75°C)
- Easy Installation: Plug-and-play with existing mounts and wiring
E700 Bullet Camera – SD Standard Definition
The SD-NANO E700 is the analog version of Bad Wolf Technologies’ popular HD-NANO bullet camera. Compact, lightweight, and durable, it offers high-resolution performance in a super-compact design, making it ideal for harsh environments like UAVs, drones, and naval applications.
- Resolution: 700 TVL (520K Pixels)
- Video Output: Analog / CVBS
- Durable Design: Rated IP67 for waterproof, weatherproof, and dustproof operation
- Compact & Lightweight: Optimized for aerial, naval, and land-based vehicles
- Low Light Performance: High sensitivity for clear video in challenging conditions

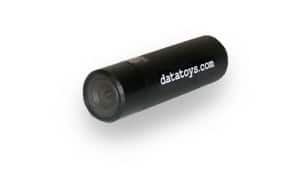

CVBS – E600 Bullet Camera – SD Standard Definition
The E600 Mini Bullet Camera offers high-resolution performance in a rugged, compact design, making it ideal for harsh environments. With true color reproduction, excellent low-light sensitivity, and digital noise reduction, this camera is perfect for demanding applications like UAVs, vehicles, and marine environments.
- Resolution: 1,000 TVL, 1.3 Megapixel Sony Starvis sensor
- Video Output: Analog CVBS (1280 x 960)
- Durable Design: Shockproof, waterproof to IP67
- Low Light Performance: Excellent sensitivity with 2D noise reduction
- Advanced Features: Wide dynamic range, image stabilization, and quick disconnect option

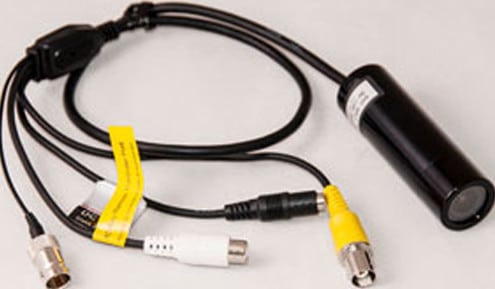

HD Mini Bullet Camera – 23mm x 77mm
The HD Mini Bullet Camera delivers full 1080p high-definition video in a compact, durable design. Optimized for military and aviation applications, this rugged camera connects easily to HD-SDI recorders or monitors, providing high performance in extreme environments.
- Resolution: 1080p30 via HD-SDI
- 2.1 Megapixel, 1/3″ Sony Exmor Color CMOS sensor
- Lens Options: Multiple lenses from 3.6mm to 8mm available
- Durable Design: Compact, rugged, and easy to mount
- Compatibility: Connects to Datatoys AirKnight and other HD-SDI recorders
- Features: Adjustable settings, noise and vibration reduction, wide-angle lens

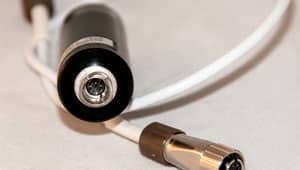

HD Mini Bullet Camera with Quick Disconnect – 23mm x 77mm
The HD Mini Bullet Camera with Quick Disconnect offers full 1080p high-definition video in a compact, durable design. Featuring a single quick connector for both HD-SDI and power, it’s optimized for easy installation and use in military and aviation applications.
- Resolution: 1080p30 via HD-SDI
- Quick Disconnect: Single connector for HD-SDI and power
- Lens Options: 2.9mm, 3.7mm, 8.0mm, 16mm
- Durable Design: Compact, rugged, and easy to mount
- Compatibility: Connects to Datatoys AirKnight and other HD-SDI recorders
DataToys HD-SDI, 3G-SDI, and CVBS PAL / NTSC bullet cameras are specifically matched with the AirKnight HD series of airborne rugged video recorders for the optimal performance or can be used for direct viewing on a monitor. They are specifically engineered for high performance, durability in harsh environments, compact size and ease of use.
DataToys also offers a line of high-resolution standard definition cameras with 600TVL (600 television lines) resolution, designed to perform in harsh environments. These cameras are ideal for use with legacy standard definition systems or downlink solutions where saving bandwidth is important. They are fully compatible with the DataToys AirKnight HD recorders through CVBS NTSC or PAL video inputs. If you’re still using standard definition and aren’t ready to upgrade to high definition, this camera provides an excellent solution. Its performance surpasses that of most existing SD cameras on the market.
